STYB mine flameproof three-phase permanent magnet synchronous electric drum, creative use of advanced external rotor permanent magnet direct drive technology, and intelligent control system is now combined to integrate the motor and drum, revolutionary abandoned the reducer, hydraulic coupling and coupling and other mechanical devices, so that the direct drive of the conveyor into reality.

Model and its meaning: □ TY B XX-XX-XXX × XXXX (660/1140)

♪--- S: water cooling

TY --- synchronous permanent magnet

B- -- Feature code: Flameproof type B

XX --- Motor power, in kW

-XX --- Roller surface linear velocity, unit: m/s

-XXX-Nominal diameter in mm

×XXXX --- applicable bandwidth, in mm

(660/1140)--- rated voltage, in V

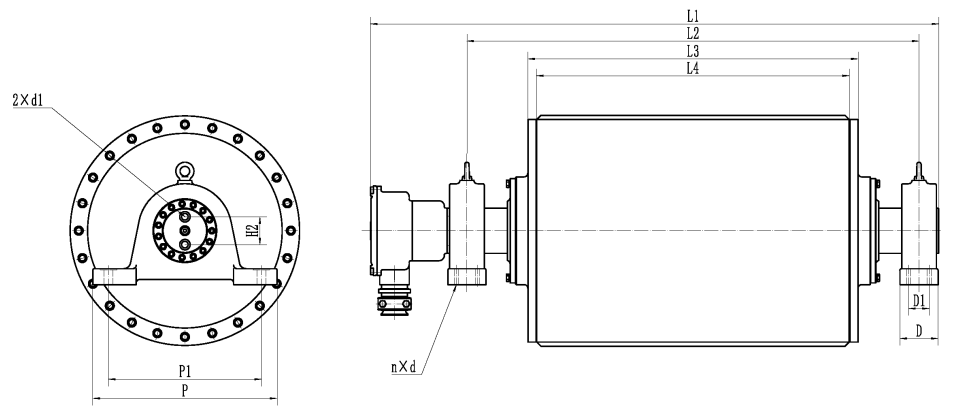

Product features:

★Integrated design, simple structure, more direct transmission

★Good force and energy characteristics, large output torque, stable start, constant torque control

★Compact structure, small footprint, neat appearance, saving roadway space

★No gear wear, no oil pool leakage, safe and more reliable, high reliability

★High operating efficiency, energy saving, low operating cost, good economic benefits

★Easy installation, simple maintenance, very low maintenance, saving maintenance costs

Permanent magnet electric drum parameter table

(Series P = 20, power factor cos φ = 0.99, efficiency η = 0.96)

Permanent magnet electric drum parameter table

(Series P = 16, power factor cos φ = 0.99, efficiency η = 0.96)

Cylinder diameter (mm)	Bandwidth (mm)	Rated torque (kNm)	Belt speed (m/s)	Rated speed (r/min)	Rated power (kW)	Rated frequency (Hz)	Rated current 380V (A)	Rated current 660V (A)	Rated current 1140V (A)
500	650	3.3	1.6	61.0	21.4	8.1	34.3	19.7	11.4
			2	76.5	26.8	10.2	42.8	24.6	14.3
			2.5	95.5	33.5	12.7	53.5	30.8	17.8
			3.15	120.0	42.2	16.0	67.4	38.8	22.5
			3.55	136.0	47.5	18.1	76.0	43.8	25.3
			4	153.0	53.6	20.4	85.6	49.3	28.5
			4.5	172.0	60.3	22.9	96.3	55.5	32.1
	800	5.0	1.6	61.0	32.1	8.1	51.4	29.6	17.1
			2	76.5	40.2	10.2	64.2	37.0	21.4
			2.5	95.5	50.2	12.7	80.3	46.2	26.8
			3.15	120.0	63.3	16.0	101.1	58.2	33.7
			3.55	136.0	71.3	18.1	114.0	65.6	38.0
			4	153.0	80.3	20.4	128.4	73.9	42.8
			4.5	172.0	90.4	22.9	144.5	83.2	48.2
	1000	6.7	1.6	61.0	42.8	8.1	68.5	39.4	22.8
			2	76.5	53.6	10.2	85.6	49.3	28.5
			2.5	95.5	67.0	12.7	107.0	61.6	35.7
			3.15	120.0	84.4	16.0	134.9	77.6	45.0
			3.55	136.0	95.1	18.1	152.0	87.5	50.7
			4	153.0	107.1	20.4	171.3	98.6	57.1
			4.5	172.0	120.5	22.9	192.7	110.9	64.2

Permanent magnet electric drum parameter table

(Series P = 20, power factor cos φ = 0.99, efficiency η = 0.96)

Cylinder diameter (mm)	Bandwidth (mm)	Rated torque (KNm)	Belt speed (m/s)	Rated speed (r/min)	Rated power (KW)	Rated frequency (Hz)	Rated current 380V (A)	Rated current 660V (A)	Rated current 1140V (A)
630	650	6.3	1.6	48.0	31.7	8.0	50.7	29.2	16.9
			2	60.0	39.7	10.0	63.4	36.5	21.1
			2.5	75.0	49.6	12.5	79.3	45.6	26.4
			3.15	95.0	62.5	15.8	99.9	57.5	33.3
			3.55	106.0	70.4	17.7	112.5	64.8	37.5
			4	120.0	79.3	20.0	126.8	73.0	42.3
			4.5	135.0	89.2	22.5	142.7	82.1	47.6
	800	9.6	1.6	48.0	48.0	8.0	76.7	44.2	25.6
			2	60.0	60.0	10.0	95.9	55.2	32.0
			2.5	75.0	75.0	12.5	119.9	69.0	40.0
			3.15	95.0	94.5	15.8	151.1	87.0	50.4
			3.55	106.0	106.5	17.7	170.3	98.0	56.8
			4	120.0	120.0	20.0	191.8	110.5	63.9
			4.5	135.0	135.0	22.5	215.8	124.3	71.9
	1000	12.8	1.6	48.0	64.3	8.0	102.8	59.2	34.3
			2	60.0	80.3	10.0	128.4	73.9	42.8
			2.5	75.0	100.4	12.5	160.5	92.4	53.5
			3.15	95.0	126.5	15.8	202.3	116.5	67.4
			3.55	106.0	142.6	17.7	228.0	131.3	76.0
			4	120.0	160.7	20.0	256.9	147.9	85.6
			4.5	135.0	180.8	22.5	289.0	166.4	96.3
	1200	16.8	1.6	48.0	84.6	8.0	135.3	77.9	45.1
			2	60.0	105.8	10.0	169.1	97.4	56.4
			2.5	75.0	132.2	12.5	211.4	121.7	70.5
			3.15	95.0	166.6	15.8	266.3	153.3	88.8
			3.55	106.0	187.7	17.7	300.1	172.8	100.0
			4	120.0	211.5	20.0	338.2	194.7	112.7
			4.5	135.0	238.0	22.5	380.4	219.0	126.8
	1400	20.1	1.6	48.0	100.9	8.0	161.3	92.9	53.8
			2	60.0	126.1	10.0	201.6	116.1	67.2
			2.5	75.0	157.6	12.5	252.0	145.1	84.0
			3.15	95.0	198.6	15.8	317.5	182.8	105.8
			3.55	106.0	223.8	17.7	357.8	206.0	119.3
			4	120.0	252.2	20.0	403.2	232.1	134.4
			4.5	135.0	283.7	22.5	453.6	261.2	151.2
800	800	14.5	1.6	38.4	58.3	7.7	93.2	53.7	31.1
			2	48.0	72.9	9.6	116.5	67.1	38.8
			2.5	60.0	91.1	12.0	145.6	83.8	48.5
			3.15	75.0	114.8	15.0	183.5	105.6	61.2
			3.55	85.0	129.3	17.0	206.8	119.1	68.9
			4	96.0	145.7	19.2	233.0	134.1	77.7
			4.5	108.0	164.0	21.6	262.1	150.9	87.4
	1000	19.6	1.6	38.4	78.9	7.7	126.2	72.7	42.1
			2	48.0	98.7	9.6	157.7	90.8	52.6
			2.5	60.0	123.3	12.0	197.2	113.5	65.7
			3.15	75.0	155.4	15.0	248.4	143.0	82.8
			3.55	85.0	175.1	17.0	280.0	161.2	93.3
			4	96.0	197.3	19.2	315.5	181.6	105.2
			4.5	108.0	222.0	21.6	354.9	204.3	118.3
	1200	27.3	1.6	38.4	109.9	7.7	175.7	101.1	58.6
			2	48.0	137.4	9.6	219.6	126.4	73.2
			2.5	60.0	171.7	12.0	274.5	158.0	91.5
			3.15	75.0	216.3	15.0	345.9	199.1	115.3
			3.55	85.0	243.8	17.0	389.8	224.4	129.9
			4	96.0	274.7	19.2	439.2	252.9	146.4
			4.5	108.0	309.1	21.6	494.1	284.5	164.7
	1400	31.2	1.6	38.4	125.4	7.7	200.4	115.4	66.8
			2	48.0	156.7	9.6	250.5	144.2	83.5
			2.5	60.0	195.9	12.0	313.1	180.3	104.4
			3.15	75.0	246.8	15.0	394.6	227.2	131.5
			3.55	85.0	278.2	17.0	444.7	256.0	148.2
			4	96.0	313.4	19.2	501.0	288.5	167.0
			4.5	108.0	352.6	21.6	563.7	324.5	187.9
	1600	36.3	1.6	38.4	146.0	7.7	233.4	134.4	77.8
			2	48.0	182.5	9.6	291.8	168.0	97.3
			2.5	60.0	228.1	12.0	364.7	210.0	121.6
			3.15	75.0	287.4	15.0	459.5	264.6	153.2
			3.55	85.0	323.9	17.0	517.9	298.2	172.6
			4	96.0	365.0	19.2	583.5	336.0	194.5
			4.5	108.0	410.6	21.6	656.4	378.0	218.8
1000	800	24.7	1.6	30.5	78.8	8.1	125.9	72.5	42.0
			2	38.0	98.4	10.1	157.4	90.6	52.5
			2.5	47.6	123.1	12.7	196.7	113.3	65.6
			3.15	60.0	155.1	16.0	247.9	142.7	82.6
			3.55	67.6	174.7	18.0	279.3	160.8	93.1
			4	76.0	196.9	20.3	314.8	181.2	104.9
			4.5	85.7	221.5	22.9	354.1	203.9	118.0
	1000	33.2	1.6	30.5	105.9	8.1	169.3	97.5	56.4
			2	38.0	132.4	10.1	211.6	121.9	70.5
			2.5	47.6	165.5	12.7	264.6	152.3	88.2
			3.15	60.0	208.5	16.0	333.3	191.9	111.1
			3.55	67.6	235.0	18.0	375.7	216.3	125.2
			4	76.0	264.8	20.3	423.3	243.7	141.1
			4.5	85.7	297.9	22.9	476.2	274.2	158.7
	1200	43.8	1.6	30.5	139.9	8.1	223.6	128.7	74.5
			2	38.0	174.8	10.1	279.5	160.9	93.2
			2.5	47.6	218.5	12.7	349.4	201.1	116.5
			3.15	60.0	275.3	16.0	440.2	253.4	146.7
			3.55	67.6	310.3	18.0	496.1	285.6	165.4
			4	76.0	349.7	20.3	559.0	321.8	186.3
			4.5	85.7	393.4	22.9	628.8	362.1	209.6
	1400	52.3	1.6	30.5	167.0	8.1	267.0	153.7	89.0
			2	38.0	208.8	10.1	333.7	192.2	111.2
			2.5	47.6	261.0	12.7	417.2	240.2	139.1
			3.15	60.0	328.8	16.0	525.7	302.7	175.2
			3.55	67.6	370.6	18.0	592.4	341.1	197.5
			4	76.0	417.5	20.3	667.5	384.3	222.5
			4.5	85.7	469.7	22.9	750.9	432.4	250.3
	1600	60.8	1.6	30.5	194.2	8.1	310.4	178.7	103.5
			2	38.0	242.7	10.1	388.0	223.4	129.3
			2.5	47.6	303.4	12.7	485.0	279.3	161.7
			3.15	60.0	382.3	16.0	611.1	351.9	203.7
			3.55	67.6	430.8	18.0	688.7	396.5	229.6
			4	76.0	485.4	20.3	776.0	446.8	258.7
			4.5	85.7	546.1	22.9	873.0	502.7	291.0
1250	1000	59.0	1.6	24.3	150.1	6.5	240.0	138.2	80.0
			2	30.4	187.6	8.1	300.0	172.7	100.0
			2.5	38.0	234.6	10.1	375.0	215.9	125.0
			3.15	48.0	295.5	12.8	472.5	272.0	157.5
			3.55	54.0	333.1	14.4	532.5	306.6	177.5
			4	60.8	375.3	16.2	599.9	345.4	200.0
			4.5	68.5	422.2	18.3	674.9	388.6	225.0
	1200	78.7	1.6	24.3	200.2	6.5	320.0	184.2	106.7
			2	30.4	250.2	8.1	400.0	230.3	133.3
			2.5	38.0	312.7	10.1	500.0	287.9	166.7
			3.15	48.0	394.1	12.8	629.9	362.7	210.0
			3.55	54.0	444.1	14.4	709.9	408.8	236.6
			4	60.8	500.4	16.2	799.9	460.6	266.6
			4.5	68.5	562.9	18.3	899.9	518.1	300.0
	1400	94.4	1.6	24.3	240.2	6.5	384.0	221.1	128.0
			2	30.4	300.2	8.1	480.0	276.3	160.0
			2.5	38.0	375.3	10.1	599.9	345.4	200.0
			3.15	48.0	472.9	12.8	755.9	435.2	252.0
			3.55	54.0	532.9	14.4	851.9	490.5	284.0
			4	60.8	600.5	16.2	959.9	552.7	320.0
			4.5	68.5	675.5	18.3	1079.9	621.8	360.0
	1600	110.1	1.6	24.3	280.2	6.5	448.0	257.9	149.3
			2	30.4	350.3	8.1	559.9	322.4	186.6
			2.5	38.0	437.8	10.1	699.9	403.0	233.3
			3.15	48.0	551.7	12.8	881.9	507.8	294.0
			3.55	54.0	621.7	14.4	993.9	572.3	331.3
			4	60.8	700.5	16.2	1119.9	644.8	373.3
			4.5	68.5	788.1	18.3	1259.9	725.4	420.0
